> OPTICS > Polarizers

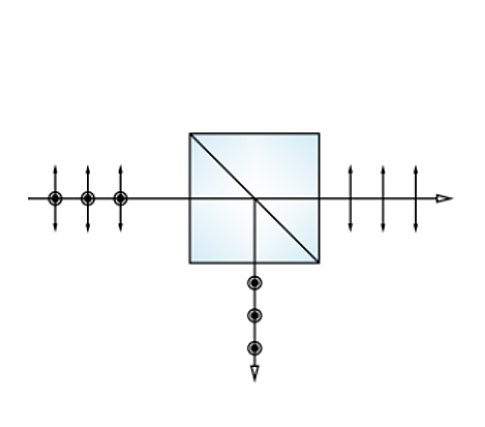

UV POLARIZING CUBE BEAMSPLITTERS
· Substrate : UV Fused Silica
· Surface Figure : λ/4 @ 633nm
· Surface Quality : 20-10 Laser Quality
· Diameter Tolerance : +0.0/-0.25mm
· Thickness Tolerance : ± 0.25mm
· AR Coating : R < 0.25% per face
· Damage Threshold : > 10 mJ/㎠ 10 nsec pulse
· Beam Deviation : ≤ 3 arc min.
· Extinction Ratio : Tp/Ts > 100:1
· Transmission Efficiency : Tp > 90.0%
· Reflectance Efficiency : Rs > 99.0%
· Clear Aperture : > 85%

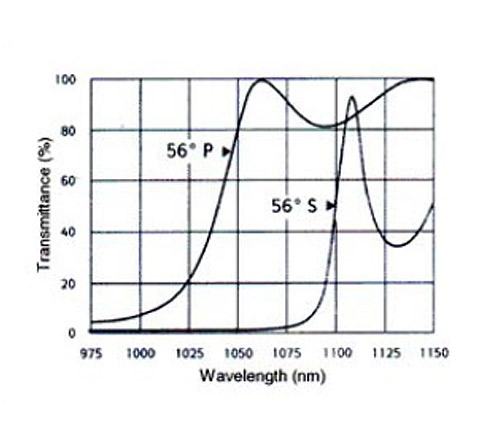

THIN FILM PLATE POLARIZERS
· Substrate : BK7 or UV Fused Silica
· Surface Figure : λ/10 @ 633nm
· S1 Surface Quality : 10-5 Laser Quality
· Diameter Tolerance : +0.0/-0.25mm
· Thickness Tolerance : ± 0.25mm
· Angle of Incidence : 56˚ ± 3˚
· Damage Threshold : > 10 mJ/㎠ 10 nsec pulse
· Beam Deviation : ≤ 3 arc min.
· Extinction Ratio : Tp/Ts > 200:1
· Transmission Efficiency : Tp > 95.0%
· Reflectance Efficiency : Rs > 99.0%
· Clear Aperture : > 85% of Diameter
POLARIZING CUBE BEAMSPLITTERS
· Substrate : BK7 or UV Fused Silica
· Surface Figure : λ/4 @ 633nm
· Surface Quality : 20-10 Laser Quality
· Diameter Tolerance : +0.0/-0.25mm
· Thickness Tolerance : ± 0.25mm
· AR Coating : R < 0.25% per face
· Damage Threshold : > 100 mJ/㎠ 10 nsec pulse
· Beam Deviation : ≤ 3 arc min.
· Extinction Ratio : Tp/Ts > 100:1
· Transmission Efficiency : Tp > 95.0%
· Reflectance Efficiency : Rs > 99.0%
· Clear Aperture : > 85%

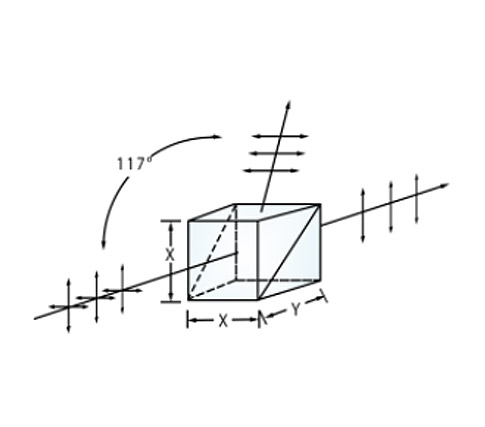

HIGH ENERGY POLARIZING CUBE BEAMSPLITTERS
· Substrate : BK7 or UV Fused Silica
· Surface Figure : λ/4 @ 633nm
· Surface Quality : 20-10 Laser Quality
· Diameter Tolerance : +0.0/-0.25mm
· Thickness Tolerance : ± 0.25mm
· AR Coating : R < 0.25% per face
· Damage Threshold : > 10 J/㎠ 10 nsec pulse
· Beam Deviation : ≤ 3 arc min.
· Extinction Ratio : Tp/Ts > 200:1
· Transmission Efficiency : Tp > 90.0%
· Reflectance Efficiency : Rs > 99.0%
· Clear Aperture : > 85%
BROADBAND POLARIZING CUBE BEAMSPLITTERS
· Substrate : SCHOTT SF2
· Surface Figure : λ/4 @ 633nm
· Surface Quality : 20-10 Laser Quality
· AR Coating : Ravg < 0.5% per face
· Damage Threshold : > 100 mJ/㎠ 10 nsec pulse
· Extinction Ratio : Tp/Ts > 200:1
· Transmission Efficiency : Tp > 90.0%
· Reflectance Efficiency : Rs > 99.0%
HIGH ENERGY BROADBAND POLARIZING CUBE BEAMSPLITTERS
· Substrate : UV Fused Silica
· Surface Figure : λ/4 @ 633nm
· Surface Quality : 10-5 Laser Quality
· AR Coating : Ravg < 0.5% per face
· Damage Threshold : > 5 mJ/㎠ 10 nsec pulse
· Beam Deviation : ≤ 3 arc min.
