Optical windows play an essential role in protecting optical components in many optical systems.
The optical lens supplier3L-Systems offers optical windows used across various industries.
- WINDOWS
-
WINDOWS AND OPTICAL FLATS
Optical windows are used to create a physical barrier between two different environments.
This prevents unwanted mixing, isolating liquids from the air and maintaining system’s vacuum state.
Optical windows are used in many optical systems to protect optical components from cases like back-splatter and out-gassing.
While optical windows can be manufactured in various shapes, they are typically produced in round or rectangular shapes.
Moreover, optical windows are constructed with two flat (PLANO) polished surfaces that possess optical characteristics.3L-Systems provides prototype and mass-produced optical windows applicable to ultraviolet, visible,and infrared wavelength ranges.

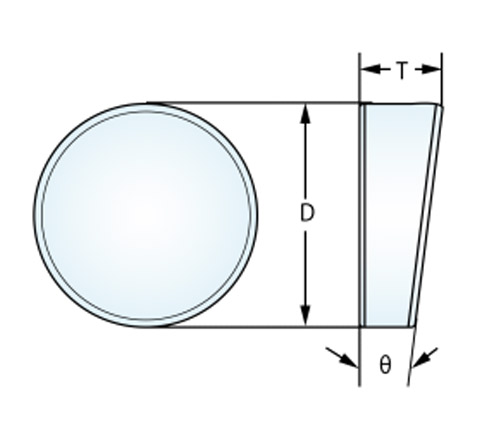

PLANE WINDOWS - WEDGE < 3 MIN.
SPEC
| Substrate | CaF2(VUV), CaF2(IR), SUPRASIL 1, Sapphire, Silicon, Germanium, Zinc Sulfide , or ZnSe window |
|---|---|
| Diameter Tolerance | +0.0/-0.20 mm |
| Thickness Tolerance | ±0.25 mm |
| Transmitted Wavefront | measure at 633 nm |
| Wedge | < 3 arc min. |
| Clear Aperture | > 85% of diameter |
| Edge Bevel | 0.3 mm face width at 45˚ |

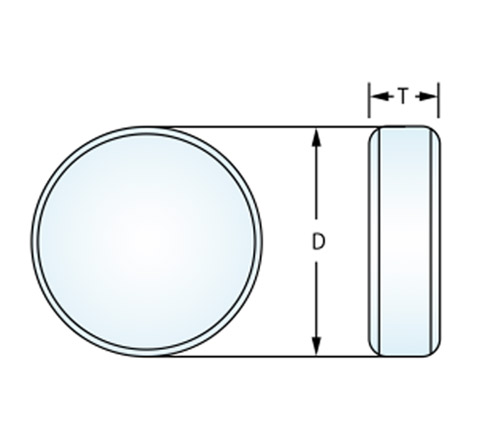

PARALLEL WINDOWS - WEDGE < 10 SEC.
SPEC
| Substrate | CaF2(VUV), CaF2(IR), SUPRASIL 1, Sapphire, Silicon, Germanium, Zinc Sulfide, or ZnSe window |
|---|---|
| Diameter Tolerance | +0.0/-0.20 mm |
| Thickness Tolerance | ±0.25 mm |
| Transmitted Wavefront | measure at 633 nm |
| Wedge | < 10 arc min. |
| Clear Aperture | > 85% of diameter |
| Edge Bevel | 0.3 mm face width at 45˚ |

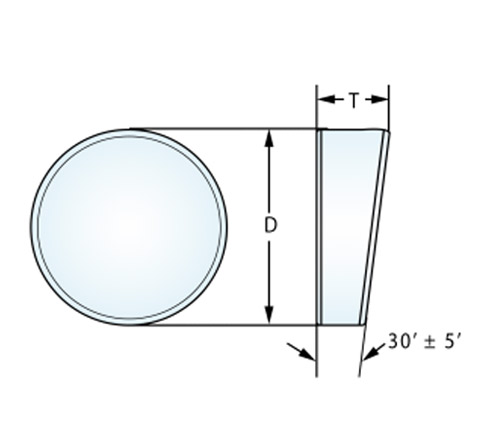

INTERFEROMETER FLATS - WEDGE 30 ± 5 MIN.
SPEC
| Substrate | SUPRASIL 1, UV Fused Silica, or BK7 |
|---|---|
| Diameter Tolerance | +0.0/-0.20 mm |
| Thickness Tolerance | ±0.25 mm |
| Surface Flatness | λ /10 @ 633 nm |
| Surface Quality | 10-5 Laser Quality |
| Wedge | 30 ± 5 arc min . |
| Clear Aperture | > 85% of diameter |
| Edge Bevel | 0.3 mm face width at 45˚ |
LARGE WEDGE WINDOWS – 1˚, 2˚, AND 3˚
SPEC
| Substrate | UV Fused Silica, or BK7 |
|---|---|
| Diameter Tolerance | +0.0/-0.20 mm |
| Thickness Tolerance | ±0.25 mm |
| Surface Flatness | λ /10 @ 633 nm |
| Surface Quality | 10-5 Laser Quality |
| Wedge | 30 ± 6 arc min . |
| Clear Aperture | > 85% of diameter |
| Edge Bevel | 0.3 mm face width at 45˚ |

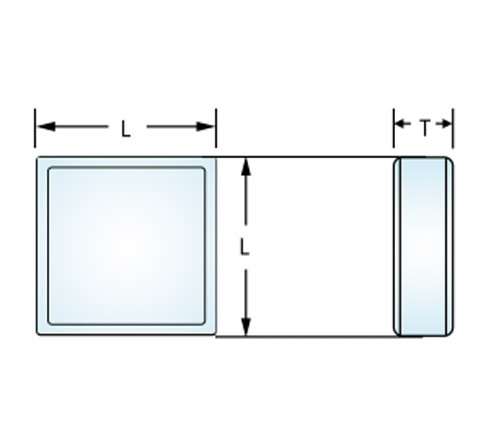

SQUARE WINDOWS
SPEC
| Substrate | UV Fused Silica, or BK7 |
|---|---|
| Diameter Tolerance | +0.0/-0.20 mm |
| Thickness Tolerance | ±0.25 mm |
| Surface Flatness | measure at 633 nm |
| Surface Quality | 10-5 Laser Quality |
| Wedge | 3 arc min . |
| Clear Aperture | > 85% of diameter |
| Edge Bevel | 0.3 mm face width at 45˚ |

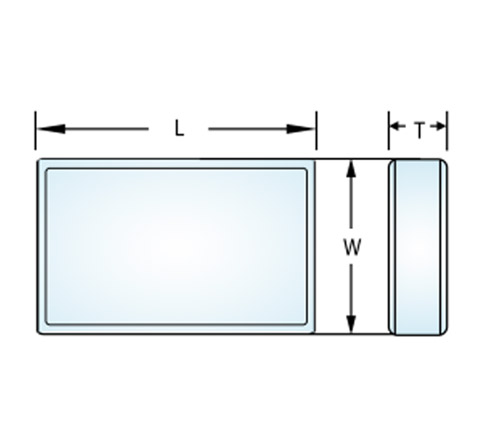

RECTANGULAR WINDOWS
SPEC
| Substrate | UV Fused Silica, or BK7 |
|---|---|
| Diameter Tolerance | +0.0/-0.20 mm |
| Thickness Tolerance | ±0.25 mm |
| Surface Flatness | measure at 633 nm |
| Surface Quality | 10-5 Laser Quality |
| Wedge | 3 arc min . |
| Clear Aperture | > 85% of diameter |
| Edge Bevel | 0.3 mm face width at 45˚ |

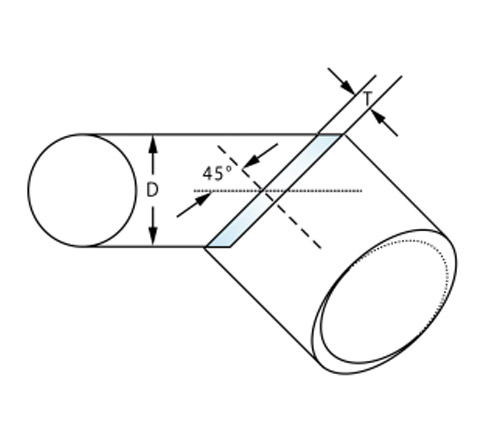

ELLIPTICAL WINDOWS
SPEC
| Substrate | UV Fused Silica, or BK7 |
|---|---|
| Diameter Tolerance | +0.0/-0.20 mm |
| Thickness Tolerance | ±0.25 mm |
| Surface Flatness | λ /10 @ 633 nm |
| Surface Quality | 10-5 Laser Quality |
| Wedge | 3 arc min . |
| Clear Aperture | > 85% of diameter |
| Edge Bevel | 0.3 mm face width at 45˚ |

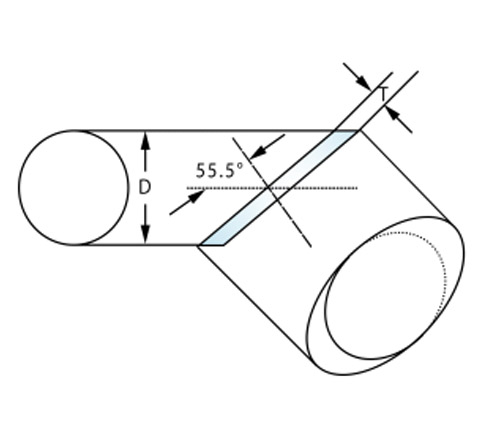

BREWSTER WINDOWS
SPEC
| Substrate | SUPRASIL 1 OR UV Fused Silica |
|---|---|
| Diameter Tolerance | +0.0/-0.20 mm |
| Thickness Tolerance | ±0.25 mm |
| Surface Flatness | λ /10 @ 633 nm |
| Surface Quality | 10-5 Laser Quality |
| Wedge | 3 arc min . |
| Clear Aperture | > 85% of diameter |
| Edge Bevel | 0.3 mm face width at 45˚ |
