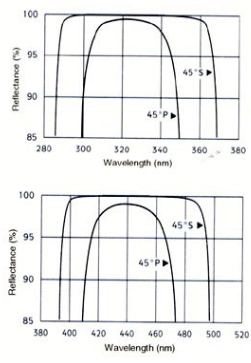

NITROGEN LASER MIRRORS
SPEC
| Substrates material | UV fused silica , BK7 |
|---|---|
| S1 Surface Figure | λ/10 @ 633nm |
| S1 Surface Quality | 10-5 laser quality |
| Diameter Tolerance | +0.0 / -0.20 mm |
| Thickness Tolerance | ± 0.25mm |
| Wedge | < 3 arc min. |
| Clear Aperture | > 85% of diameter |
| Chamfer | 0.3mm at 45 typical |
| Damage Threshold | 1 j/㎠ 10 nsec Pulse |
| Adhesion Threshold | Per MIL-C-675A |
HE-CD LASER MIRRORS
SPEC
| Substrates material | UV fused silica , BK7 |
|---|---|
| S1 Surface Figure | λ/10 @ 633nm |
| S1 Surface Quality | 10-5 laser quality |
| S1 Surface Quality | Commercial Polish |
| Diameter Tolerance | +0.0 / -0.20 mm |
| Thickness Tolerance | ± 0.25mm |
| Clear Aperture | > 85% of diameter |
| Chamfer | 0.3mm at 45 typical |
| Damage Threshold | 1 j/㎠ 10 nsec Pulse |
| Adhesion Threshold | Per MIL-C-675A |
COPPER VAPOOR LASER MIRRORS
SPEC
| Substrates material | UV fused silica , BK7 |
|---|---|
| S1 Surface Figure | λ/10 @ 633nm |
| S1 Surface Quality | 10-5 laser quality |
| S1 Surface Quality | Commercial Polish |
| Diameter Tolerance | +0.0 / -0.20 mm |
| Thickness Tolerance | ± 0.25mm |
| Clear Aperture | > 85% of diameter |
| Chamfer | 0.3mm at 45 typical |
| Damage Threshold | 1 j/㎠ 10 nsec Pulse |
| Adhesion Threshold | Per MIL-C-675A |
HE-NE LASER MIRRORS (632.8nm)
SPEC
| Substrates material | UV fused silica , BK7 |
|---|---|
| S1 Surface Figure | λ/10 @ 633nm |
| S1 Surface Quality | 15-5 laser quality |
| S1 Surface Quality | Commercial Polish |
| Diameter Tolerance | +0.0 / -0.20 mm |
| Thickness Tolerance | ± 0.25mm |
| Clear Aperture | > 85% of diameter |
| Chamfer | 0.3mm at 45 typical |
| Damage Threshold | 1 j/㎠ 10 nsec Pulse |
| Adhesion Threshold | Per MIL-C-675A |
RUBY LASER MIRRORS (694.3nm)
SPEC
| Substrates material | UV fused silica , BK7 |
|---|---|
| S1 Surface Figure | λ/10 @ 633nm |
| S1 Surface Quality | 15-5 laser quality |
| S1 Surface Quality | Commercial Polish |
| Diameter Tolerance | +0.0 / -0.20 mm |
| Thickness Tolerance | ± 0.25mm |
| Clear Aperture | > 85% of diameter |
| Chamfer | 0.3mm at 45 typical |
| Damage Threshold | 10 j/㎠ 10 nsec Pulse |
| Adhesion Threshold | Per MIL-C-675A |
ALEXANDRITE LASER MIRRORS (720-780nm)
SPEC
| Substrates material | UV fused silica , BK7 |
|---|---|
| S1 Surface Figure | λ/10 @ 633nm |
| S1 Surface Quality | 10-5 laser quality |
| S1 Surface Quality | Commercial Polish |
| Diameter Tolerance | +0.0 / -0.20 mm |
| Thickness Tolerance | ± 0.25mm |
| Clear Aperture | > 85% of diameter |
| Chamfer | 0.3mm at 45 typical |
| Damage Threshold | 10 j/㎠ 10 nsec Pulse |
| Adhesion Threshold | Per MIL-C-675A |
DIODE LASER MIRRORS
SPEC
| Substrates material | BK7 |
|---|---|
| S1 Surface Figure | λ/10 @ 633nm |
| S1 Surface Quality | 10-5 laser quality |
| S1 Surface Quality | Commercial Polish |
| Diameter Tolerance | +0.0 / -0.20 mm |
| Thickness Tolerance | ± 0.25mm |
| Clear Aperture | > 85% of diameter |
| Chamfer | 0.3mm at 45 typical |
| Minimum Reflectance | ≥ 99% |
| Adhesion Threshold | Per MIL-C-675A |

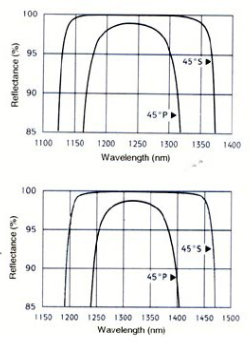

FORSTERITE (1235nm), IODINE (1315nm) LASER MIRRORS
SPEC
| Substrates material | UV fused silica or BK7 |
|---|---|
| S1 Surface Figure | λ/10 @ 633nm |
| S1 Surface Quality | 10-5 laser quality |
| S1 Surface Quality | Commercial Polish |
| Diameter Tolerance | +0.0 / -0.20 mm |
| Thickness Tolerance | ± 0.25mm |
| Clear Aperture | > 85% of diameter |
| Chamfer | 0.3mm at 45 typical |
| Damage Threshold | 1 j/㎠ 10 nsec Pulse |
| Adhesion Threshold | Per MIL-C-675A |
ER: GLASS LASER MIRRORS
SPEC
| Substrates material | BK7 |
|---|---|
| S1 Surface Figure | λ/10 @ 633nm |
| S1 Surface Quality | 10-5 laser quality |
| S1 Surface Quality | Commercial Polish |
| Diameter Tolerance | +0.0 / -0.20 mm |
| Thickness Tolerance | ± 0.25mm |
| Clear Aperture | > 85% of diameter |
| Chamfer | 0.3mm at 45 typical |
| Damage Threshold | 5 j/㎠ 10 nsec Pulse |
| Adhesion Threshold | Per MIL-C-675A |

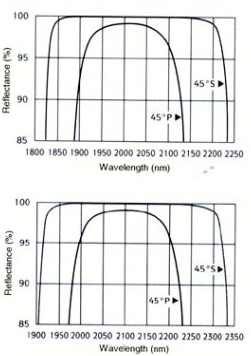

TM: YAG (2010nm), HO: YAG (2100nm) LASER MIRRORS
SPEC
| Substrates material | BK7 |
|---|---|
| S1 Surface Figure | λ/10 @ 633nm |
| S1 Surface Quality | 10-5 laser quality |
| S1 Surface Quality | Commercial Polish |
| Diameter Tolerance | +0.0 / -0.20 mm |
| Thickness Tolerance | ± 0.25mm |
| Clear Aperture | > 85% of diameter |
| Chamfer | 0.3mm at 45 typical |
| Damage Threshold | 10 j/㎠ 10 nsec Pulse |
| Adhesion Threshold | Per MIL-C-675A |
ER: YAG LASER MIRRORS (2940nm)
SPEC
| Substrates material | BK7 |
|---|---|
| S1 Surface Figure | λ/10 @ 633nm10-5 laser quality |
| S1 Surface Quality | 10-5 laser quality |
| S1 Surface Quality | Commercial Polish |
| Diameter Tolerance | +0.0 / -0.20 mm |
| Thickness Tolerance | ± 0.25mm |
| Clear Aperture | > 85% of diameter |
| Chamfer | 0.3mm at 45 typical |
| Damage Threshold | 10 j/㎠ 10 nsec Pulse |
| Adhesion Threshold | Per MIL-C-675A |
