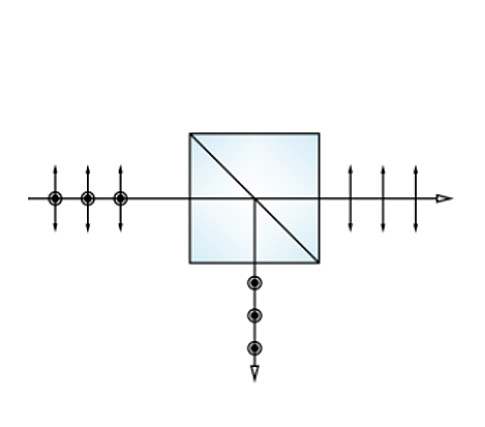

UV POLARIZING CUBE BEAMSPLITTERS
SPEC
| Substrate | UV Fused Silica |
|---|---|
| Surface Figure | λ/10 @ 633nm |
| Surface Quality | 20-10 Laser Quality |
| Diameter Tolerance | +0.0/-0.25mm |
| Thickness Tolerance | ± 0.25mm |
| AR Coating | R < 0.25% per face |
| Damage Threshold | > 10 mJ/㎠ 10 nsec pulse |
| Beam Deviation | ≤ 3 arc min. |
| Extinction Ratio | Tp/Ts > 100:1 |
| Transmission Efficiency | Tp > 90.0% |
| Reflectance Efficiency | Rs > 99.0% |
| Clear Aperture | > 85% |

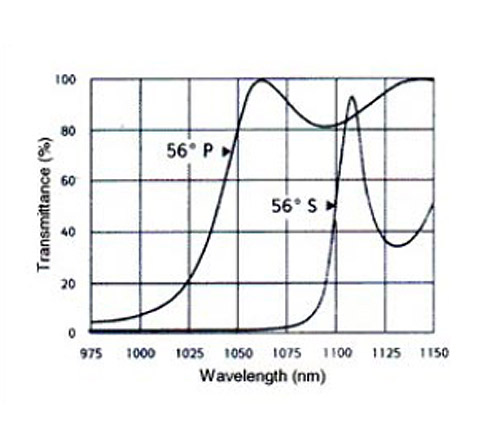

THIN FILM PLATE POLARIZERS
SPEC
| Substrate | BK7 or UV Fused Silica |
|---|---|
| Surface Figure | λ/10 @ 633nm |
| Surface Quality | 10-5 Laser Quality |
| Diameter Tolerance | +0.0/-0.25mm |
| Thickness Tolerance | ± 0.25mm |
| Angle of Incidence | 56˚ ± 3˚ |
| Damage Threshold | > 10 mJ/㎠ 10 nsec pulse |
| Beam Deviation | ≤ 3 arc min. |
| Extinction Ratio | Tp/Ts > 200:1 |
| Transmission Efficiency | Tp > 95.0% |
| Reflectance Efficiency | Rs > 99.0% |
| Clear Aperture | > 85% of Diameter |
POLARIZING CUBE BEAMSPLITTERS
SPEC
| Substrate | BK7 or UV Fused Silica |
|---|---|
| Surface Figure | λ/4 @ 633nm |
| Surface Quality | 20-10 Laser Quality |
| Diameter Tolerance | +0.0/-0.25mm |
| Thickness Tolerance | ± 0.25mm |
| AR Coating | R < 0.25% per face |
| Damage Threshold | > 100 mJ/㎠ 10 nsec pulse |
| Beam Deviation | ≤ 3 arc min. |
| Extinction Ratio | Tp/Ts > 100:1 |
| Transmission Efficiency | Tp > 95.0% |
| Reflectance Efficiency | Rs > 99.0% |
| Clear Aperture | > 85% |

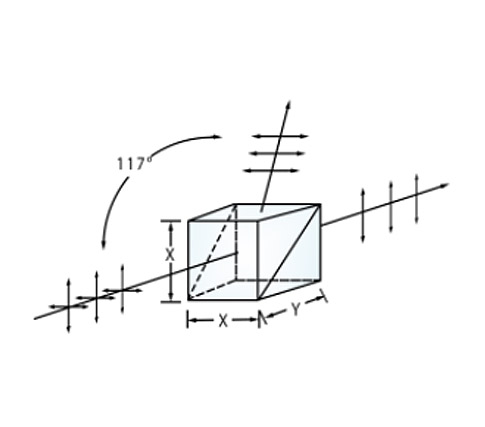

HIGH ENERGY POLARIZING CUBE BEAMSPLITTERS
SPEC
| Substrate | BK7 or UV Fused Silica |
|---|---|
| Surface Figure | λ/4 @ 633nm |
| Surface Quality | 20-10 Laser Quality |
| Diameter Tolerance | +0.0/-0.25mm |
| Thickness Tolerance | ± 0.25mm |
| AR Coating | R < 0.25% per face |
| Damage Threshold | > 10 J/㎠ 10 nsec pulse |
| Beam Deviation | ≤ 3 arc min. |
| Extinction Ratio | Tp/Ts > 200:1 |
| Transmission Efficiency | Tp > 90.0% |
| Reflectance Efficiency | Rs > 99.0% |
| Clear Aperture | > 85% |
BROADBAND POLARIZING CUBE BEAMSPLITTERS
