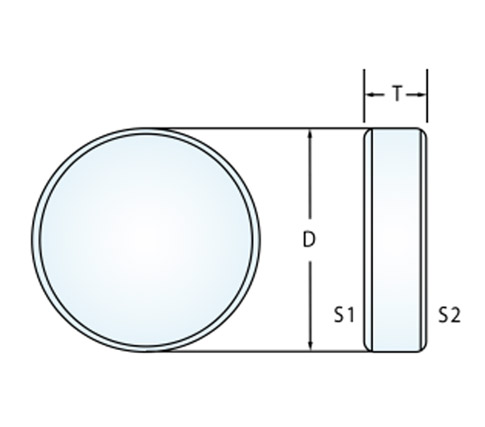

PLANE MIRROR BLANKS

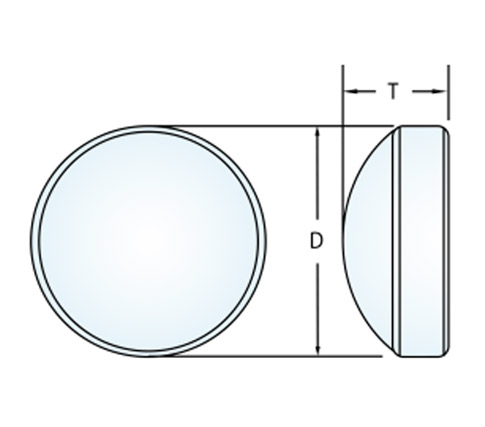

CONVEX SPHERICAL MIRROR BLANKS
SPEC
| Substrate | UV Fused Silica or BK7 |
|---|---|
| Diameter Tolerance | +0.0/-0.20 mm |
| Thickness Tolerance | ±0.25 mm |
| S1 Surface Quality | λ /10 @ 633nm |
| S2 Surface Quality | 10-5 laser quality |
| Focal Length Tolerance | ± 0.5% |
| Centration Error | < 3 arc min . |
| Clear Aperture | > 85% of diameter |
| Edge Bevel | 0.3mm face width at 45˚ |

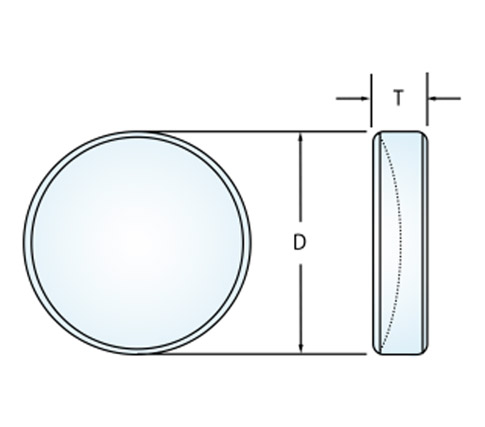

CONCAVE SPHERICAL MIRROR BLANKS
SPEC
| Substrate | UV Fused Silica or BK7 |
|---|---|
| Diameter Tolerance | +0.0/-0.20 mm |
| Thickness Tolerance | ±0.25 mm |
| S1 Surface Quality | λ /10 @ 633nm |
| S2 Surface Quality | 10-5 laser quality |
| Focal Length Tolerance | ± 0.5% |
| Centration Error | < 3 arc min . |
| Clear Aperture | > 85% of diameter |
| Edge Bevel | 0.3mm face width at 45˚ |

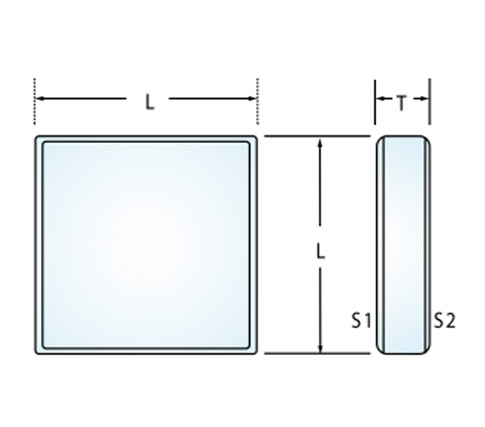

SQUARE MIRROR BLANKS

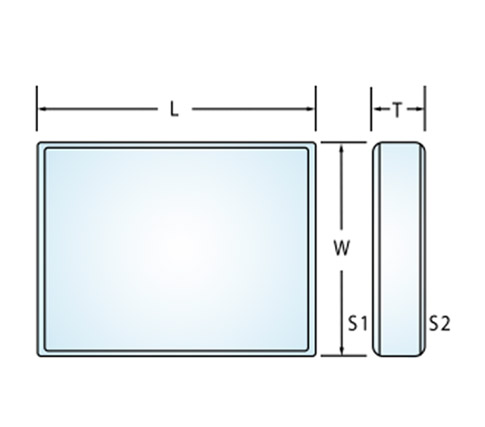

RECTANGULAR MIRROR BLANKS

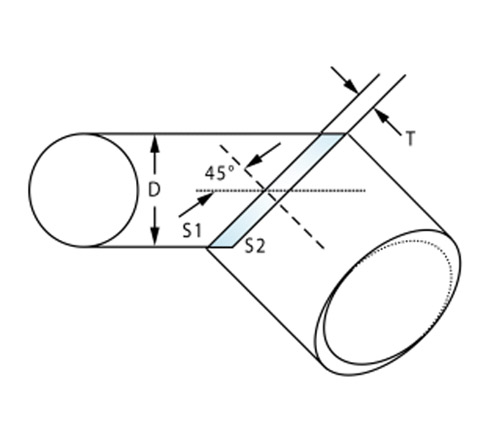

ELLIPTICAL MIRROR BLANKS
